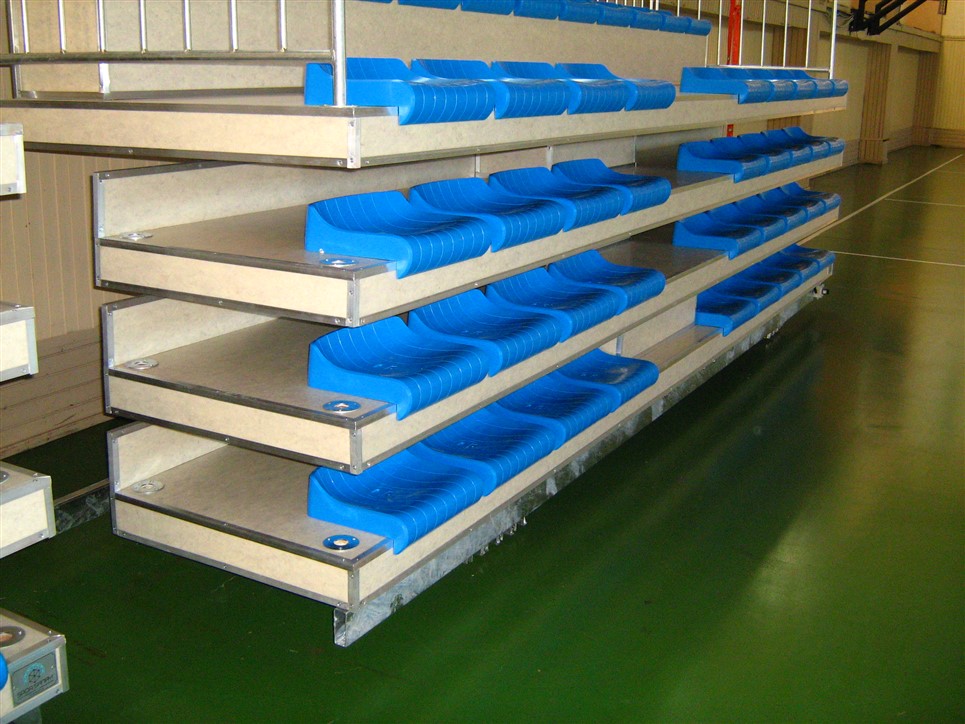

TELESCOPIC TRIBUNES

We produce all kinds of devices, equipment and tribunes that will be used for the production of telescopic tribunes in accordance with the national and / or international standards.

We produce all kinds of devices, equipment and tribunes that will be used for the production of telescopic tribunes in accordance with the national and / or international standards.

MISSION;

We produce all kinds of devices, equipment and tribunes that will be used for the production of telescopic tribunes in accordance with the national and / or international standards.
We use steel material depending on the project, static calculations and architectural design of the steel material to be used in the static values ​​(TSE EN 10219-2) standard.
Box profiles are manufactured with main carrier systems to design the products from specially shaped perforated U profile of lightweight Galvanized Sheet, ST37. Static calculations are made according to the results of the test results of the materials to be used during the application project and we shape the sizing of the material to be used.

PROPERTIES OF PLATFORM AND SUPPORTING FRAMEWORK

Depending on the project, 3mm galvanized perforated sheet have been used, which is bent in special forms and sizes in accordance with ISO 1461/1999 (E), DIN EN 1461 standards. We use box profiles only in vertical and horizontal carriers.

LOAD-BEARING SYSTEMS

LOAD-BEARING WAGON SYSTEM

In the course of maintenance and repair in the load-bearing system in the coming years, it is a great advantage to assemble the parts of the system with bolts, nuts and washers instead of welded joint for the most cheap and simple repair in the dismantling and installation of the system parts. For this reason, it is not recommended to use welding method in load-bearing framework manufacture.

Box profiles and sheets used in the manufacture of carriage and guardrail shall be selected according to the following standards.
• Box profiles DIN 2395
• Lama DIN 1016

We use the gas metal arc welding method in accordance with DIN 8559-AWS 5, BS EN 288 Part 3 1988 performed by our expert personnel trained in welding of the load-bearing structure. We use gas metal arc welding wires that conform to SG2 standards.


RAILING SYSTEM:

The production of the railings to be used in the telescopic tribune is made of box profiles. It can be coated by dip galvanizing or optionally by electrostatic powder coating method.
All bearing constructions and railings are coated with hot dip galvanization method in accordance with TS 914 EN ISO 1461 (E), DIN EN 1461 Standards.

SUPERSTRUCTURE OF LOAD-BEARING PLATFORMS:

Platforms and stair steps are covered with a 12 mm thick water seal. We apply 3mm-thick acoustic PVC flooring. We have different color and pattern options.
Galvanized sheet, electrostatic powder coated sheet, aluminium sheet, parquet and carpet can be applied on the optional load-bearing platform.

LOAD-BEARING WHEELS:

The carrier wheels are selected in accordance with the characteristics of the area to be used. Their diameter is Ø 150 × 45 mm and its bearing capacity is 500 kg per wheel.


ELECTRIC MOTOR SYSTEM:

To move the telescopic tribunes, the electric platform is mounted on the first platform and the control panel is connected and the platforms are moved back and forth.


Reducers are geared to the machine with flange or torque arm, with all-round input and output shafts positioned perpendicular to each other and with worm gear and spur gear.
With its design, it has maximum thermal capacity with optimized cooling fins for flexible positions for fixing.
The roulettes with shock absorbers are chosen in order to absorb the reaction forces that can be produced by the movement of roulette by human power or by the electric motor. The rollers connecting the wheels to the carriages comply with DIN5401 and ISI 1086 norms.


TELESCOPIC TRIBUNES [Putin Olimpik Judo Eğitim Merkezi ÇEÇENİSTAN]

TELESCOPIC TRIBUNES [İSTANBUL Ülker Sports Arena]

TELESCOPIC TRIBUNES [Ankara Arena]

TELESCOPIC TRIBUNES [İstanbul Ted Rönesans Koleji]

TELESCOPIC TRIBUNES [Moda Sahne]

TELESCOPIC TRIBUNES [Kağıthane Belediyesi Tribünler]

TELESCOPIC TRIBUNES [Türkmenistan Buz Köşkü]

TELESCOPIC TRIBUNES [TRT Stüdyosu Teleskopik Trübün]

TELESCOPIC TRIBUNES [Marmara Üniversitesi Anadolu Hisarı Kampüsü]

TELESCOPIC TRIBUNES [Afyon Üniversitesi]

For all other Product References please click here
